BY1422 printing slotting die cutting machine

Function and Characteristics

Feeding Unit

• This machine adopts chain feeding system, equipped with side gauge make sure feeding paper accurately.
• Abrasion resistance materials as the support of the bottom of chains, fast running, low noise .
• Main motor placed under the feed table.
• Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.
• Feeding error ±1.5mm.

Printing unit

• Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chromium plating.
• Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly and accurately.
• Motorized shift and pneumatic locking up of printing units.
• Inking roller can be detached from printing plate automatically to avoid damage the printing plate.
• Inking roller equipped idling running device to prevent ink from being dried when machine stop.
• Pneumatic lifting and down the anilox roller, auto ink distributing.
• With Pneumatic diaphragm pump to supply ink.
• Main transmission gears are made by 45#steel after high frequency quenching.
• Drive part adopts spray lubricating system, improve the precision and serve life of machine.

n Main shafts connect with gear used no-key connect(ringfeder), so keep shaft running stably.

• Transmission part adopts automatic spray lubraction system, improve machine use time and precision.
• All gears adopt cross slide head to perform no gap adjustment, printing accurately.
• Manual adjustment of the printing roll axial position 15mm.
• Printing precision±0.50 ㎜(when the paper board is plane and smooth).
• Auto count device properly controls production volume..

Option device: hang plate grove

• Slotting unit

• The slotting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
• The slitting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
• The back slotting knife (Height of the box) Four knives adjustment synchronous, easy working.
• Electric adjustment Printing phase and slotting position.
• 7mm alloy steel slotting knives with indent heat treatment to enable grinding teeth sharp edge.

Option: Slotting and crease joint movement by hand or motorized control Hand hole device

• Die cutting unit

• Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.
• Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber
• When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.
• Adopt high-quality Germany Depair rubber pad.
• The roller is made of cast steel, with a wall thickness of 45mm,
• Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.
• Electrically adjusted phase die-cutting position
• The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.

Main Technology Parameters

flexo printing and die cutting machine

computer controlled die cutter

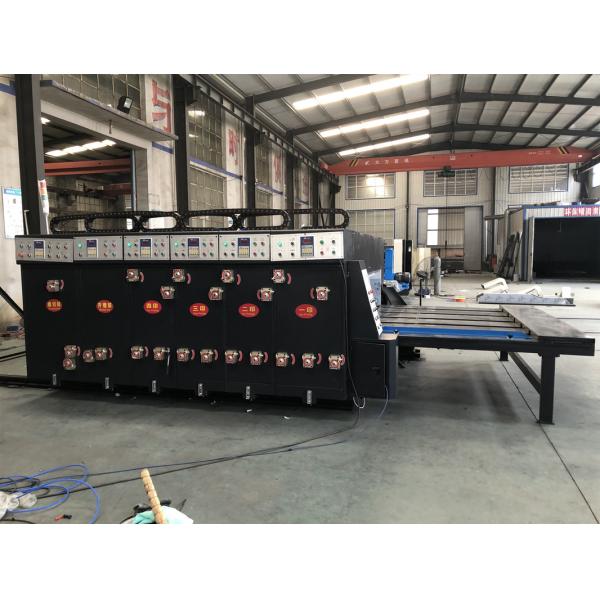

Factory Selling Semi-Automatic Printing Slotting Die Cutting Machine Images
